Space Savers: A Storage System For Crewed Inflatable Habitats
For a NASA challenge, my partner (Evie Kang) and I designed a modular, flexible storage system for inflatable habitats. Mentored by NASA engineers, we developed a fabric-based “cubby” system to ensure easy assembly and accessibility for astronauts on deep space missions.
We presented this at the Technology Collaboration Center (TCC) Conference at the space center in Houston.
*Below is a collection of the process and final product photos. An in-depth process of the project will be added shortly, so check back in soon!

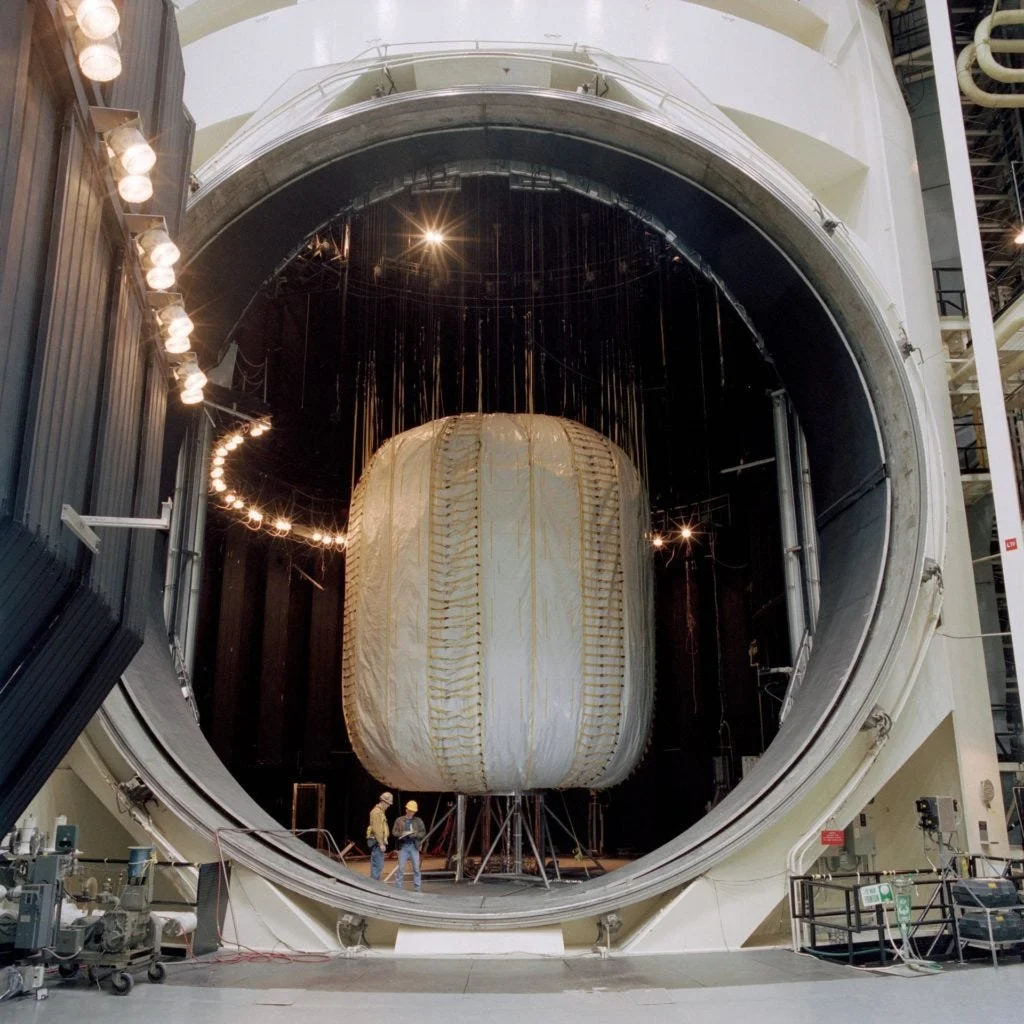

Example Inflatable Habitat Inflated

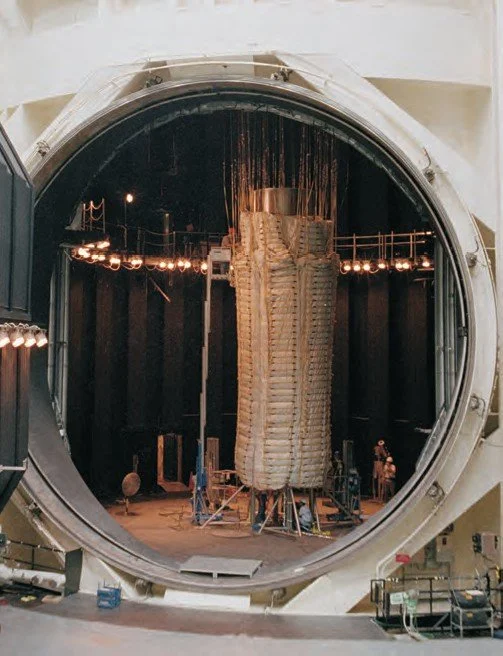

Example Inflatable Habitat Deflated
Finished Model In Context

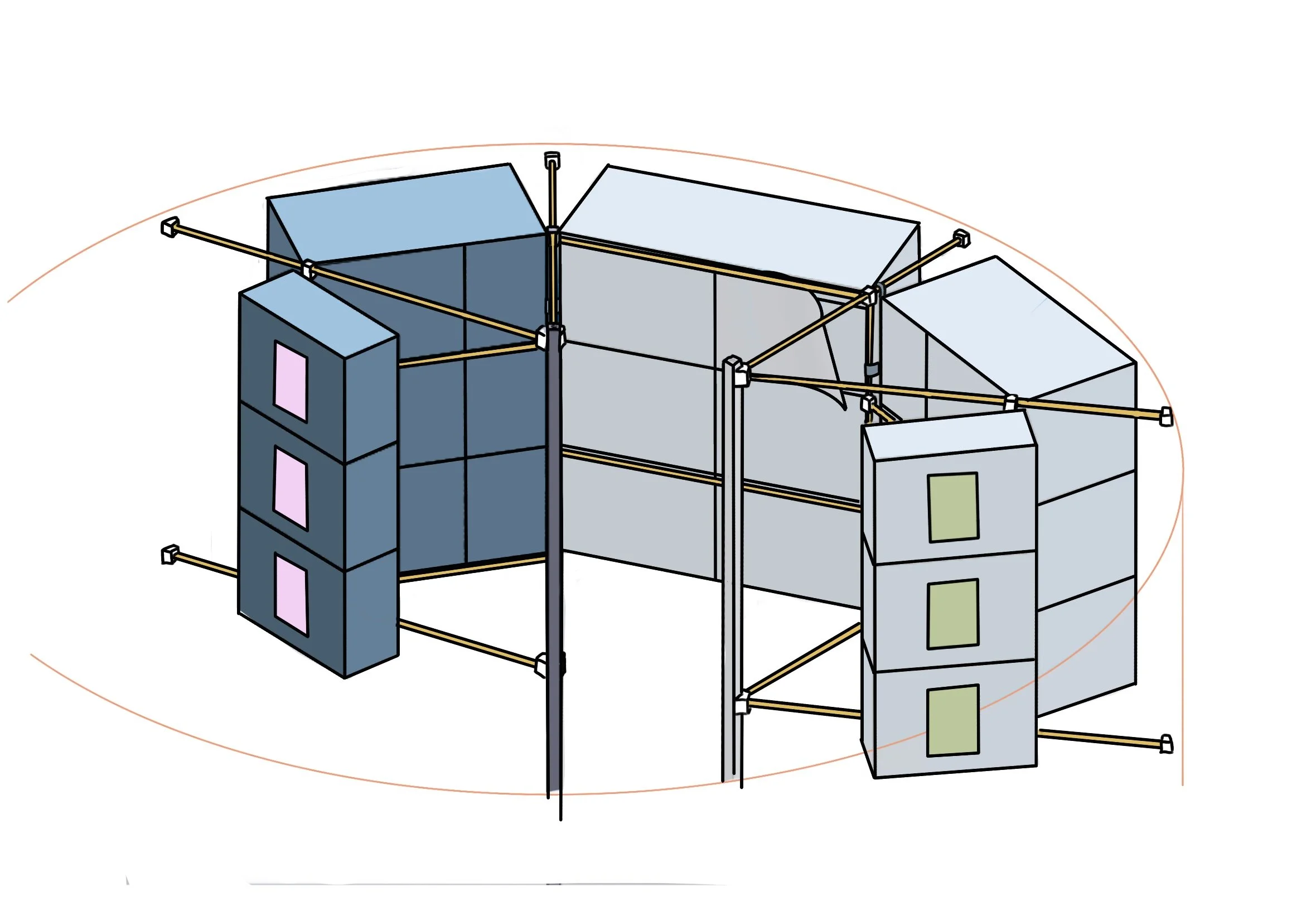

One Section Drawing
Full System Model

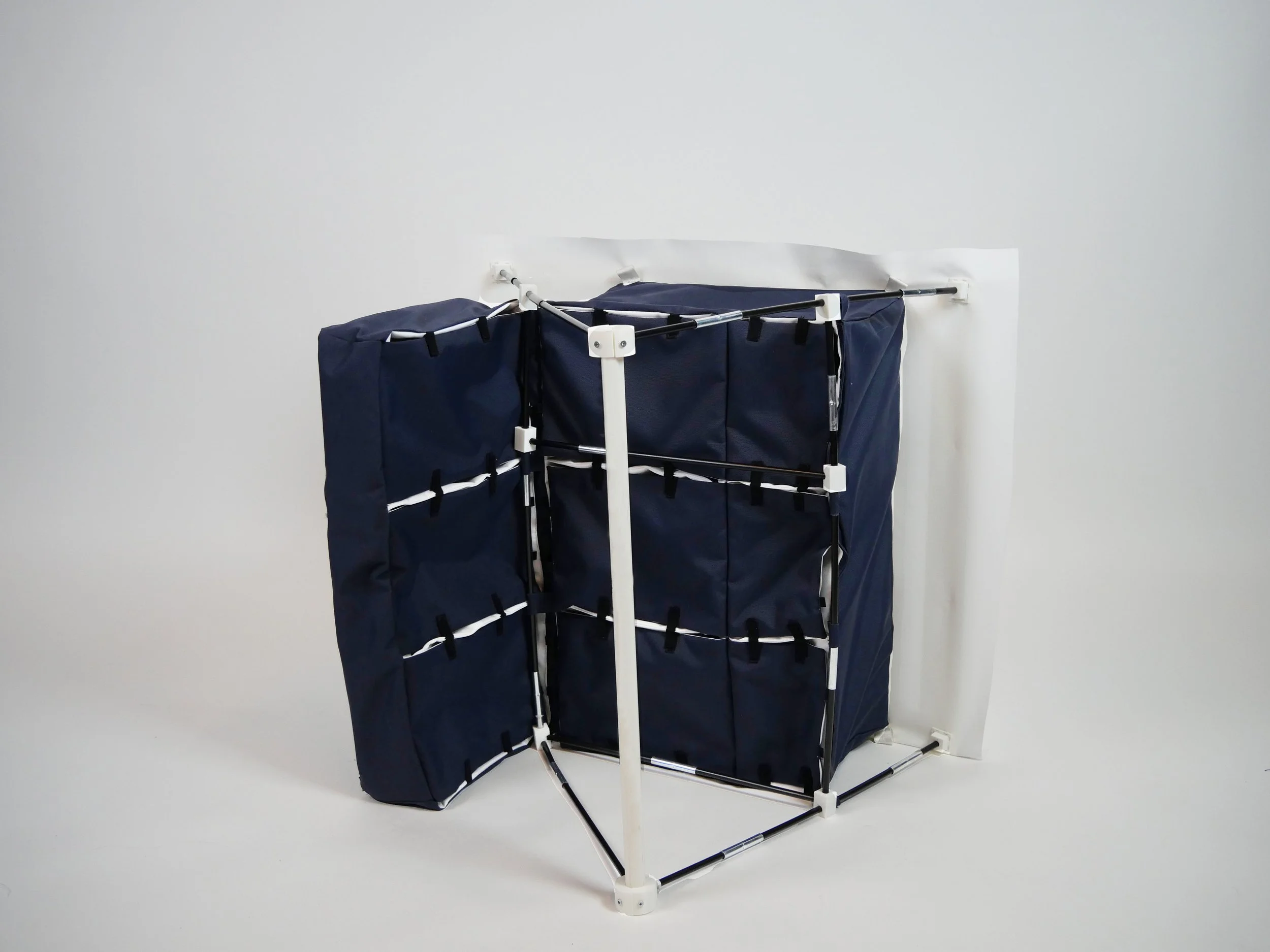

Two Units Final Model

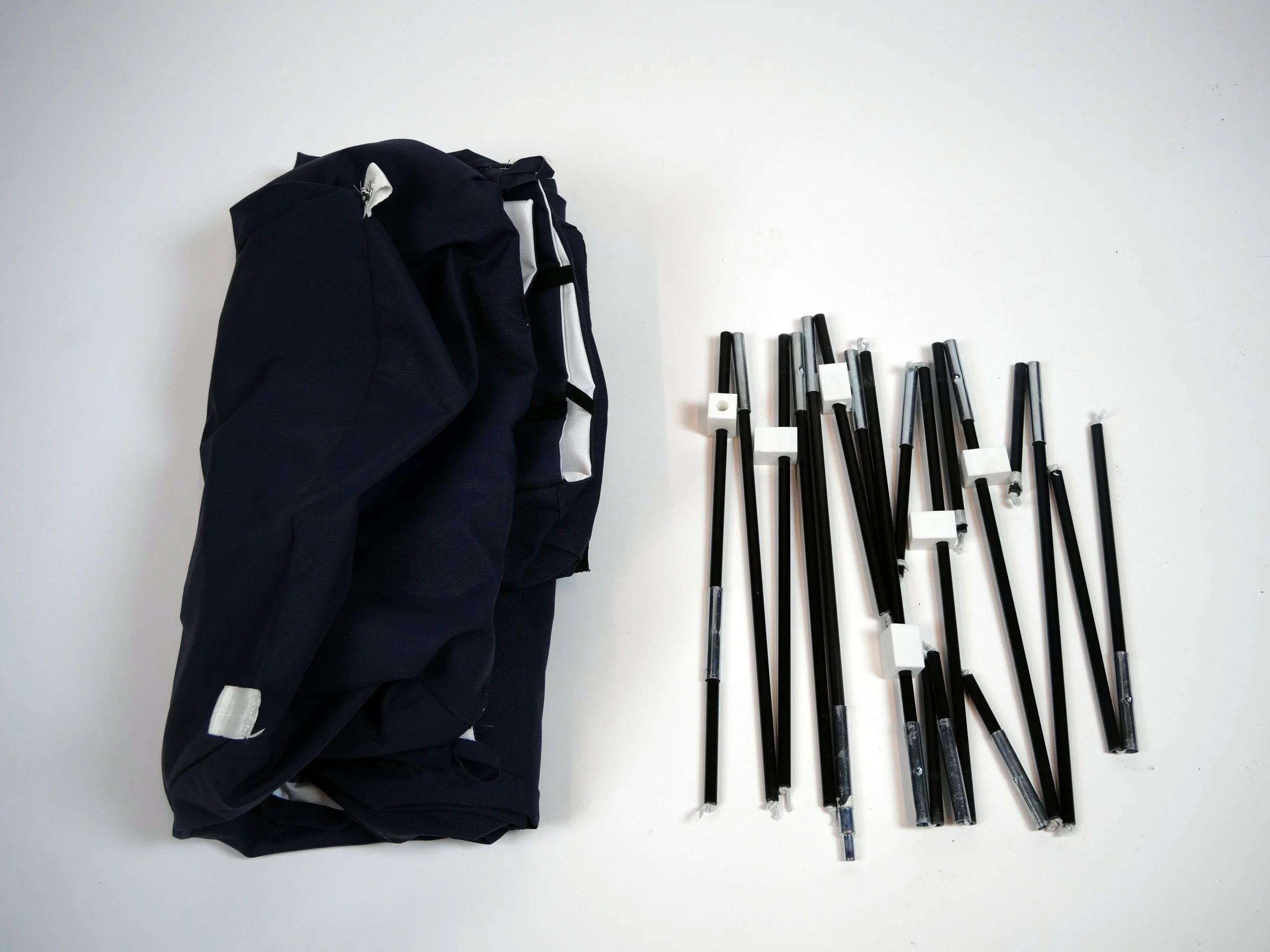

Two Units In Packed Configuration

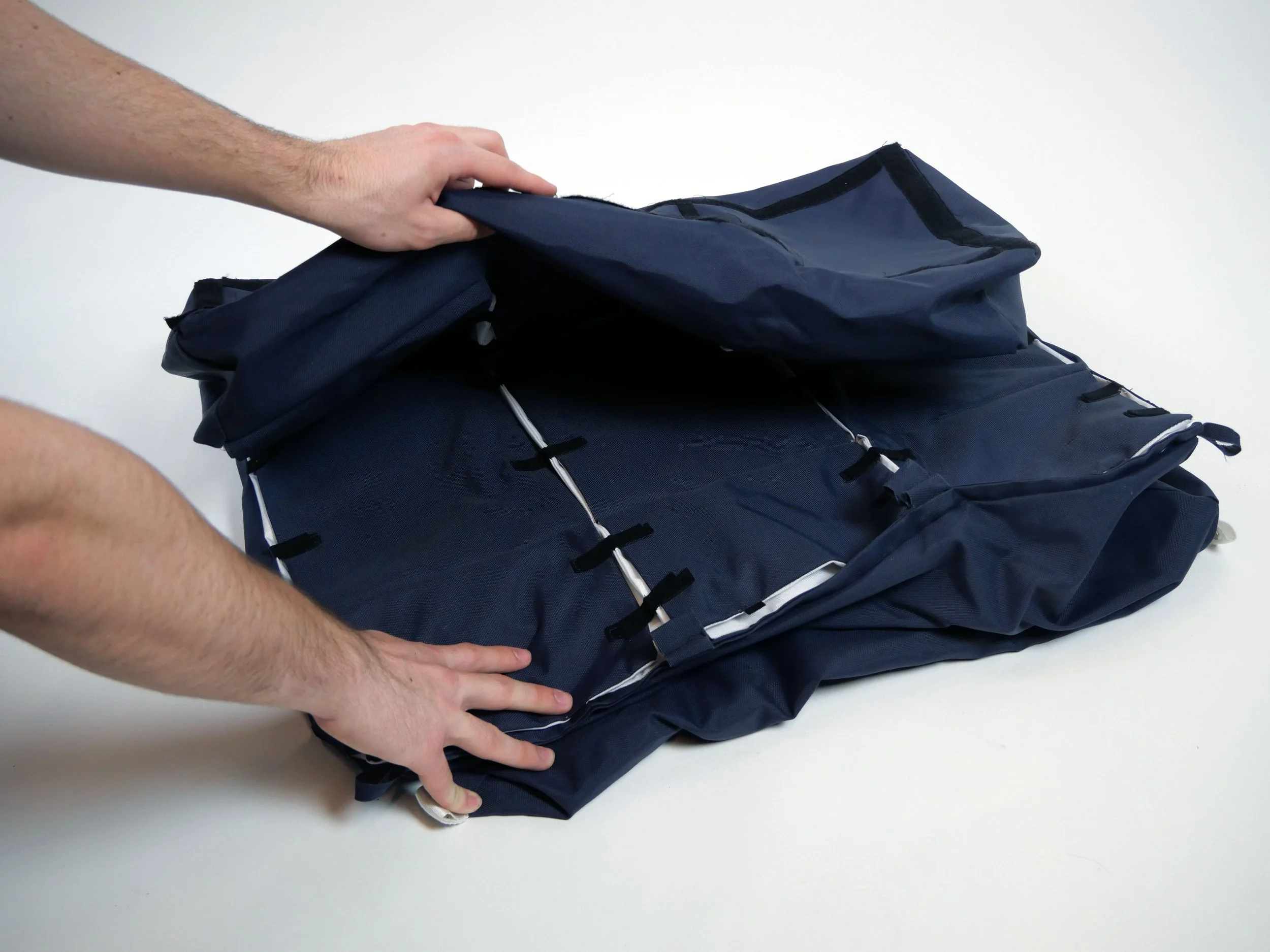

Unfolding units

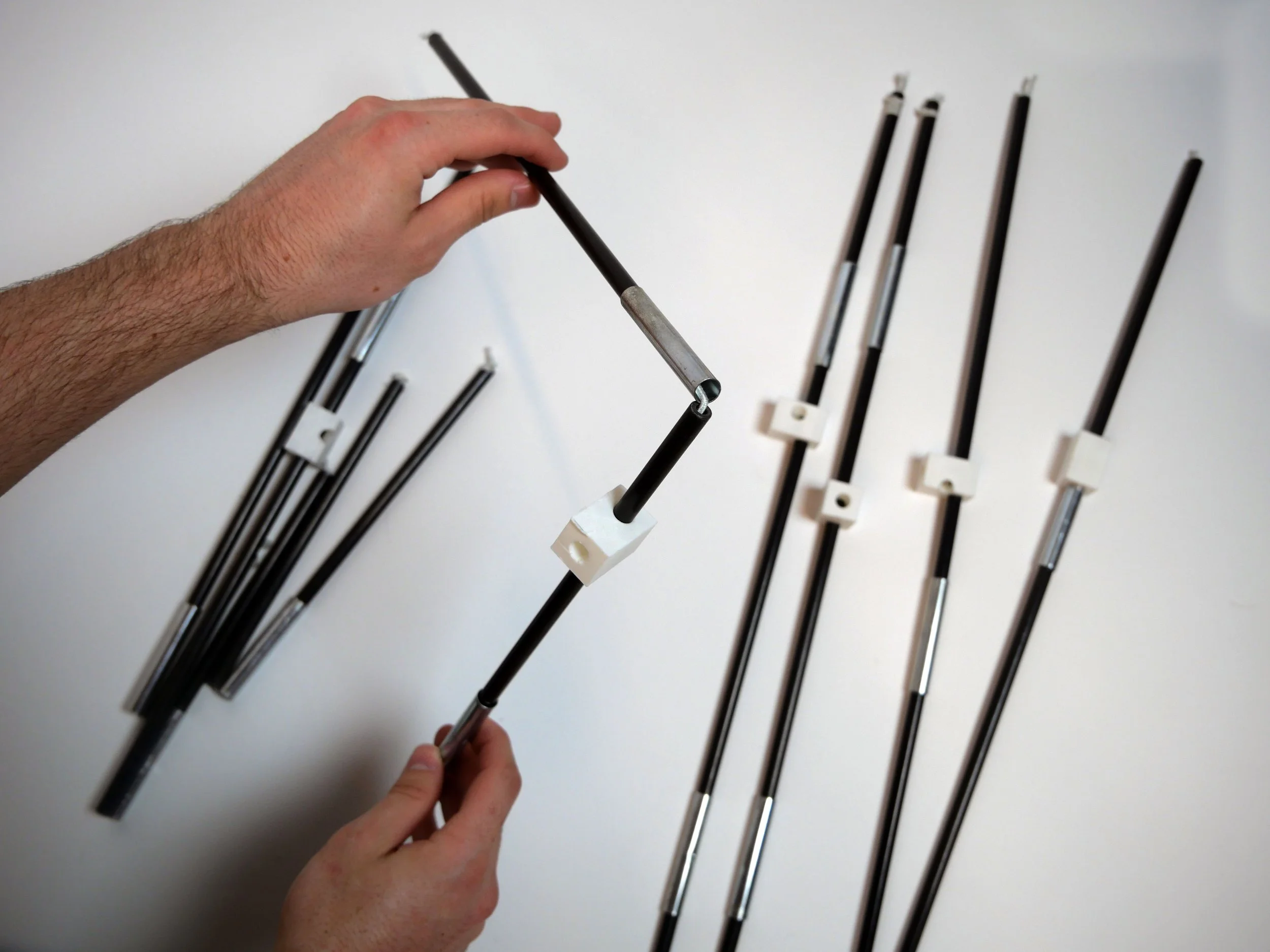

Assembling Rods

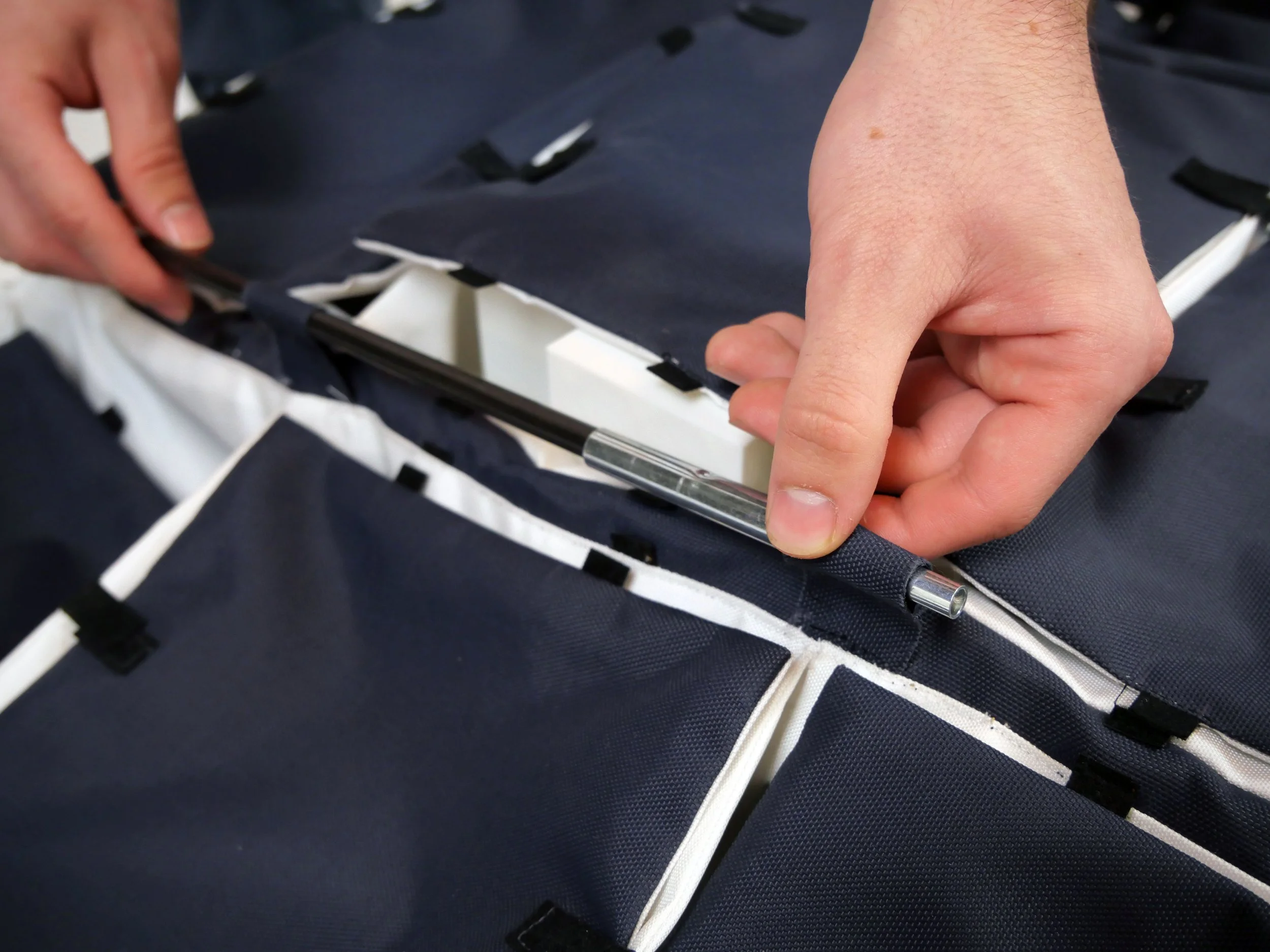

Sliding rods through designated loops

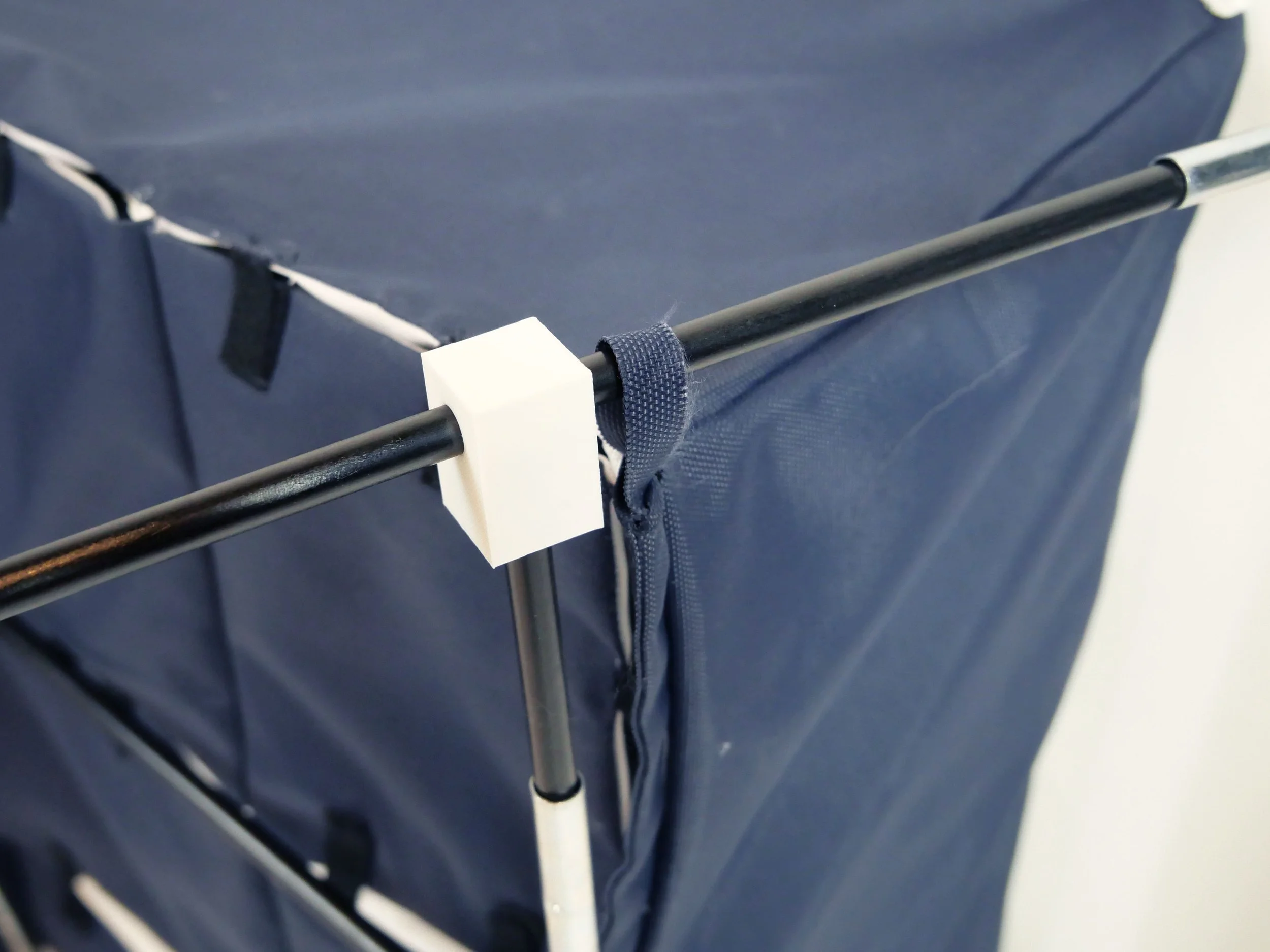

Corner loops holding up units

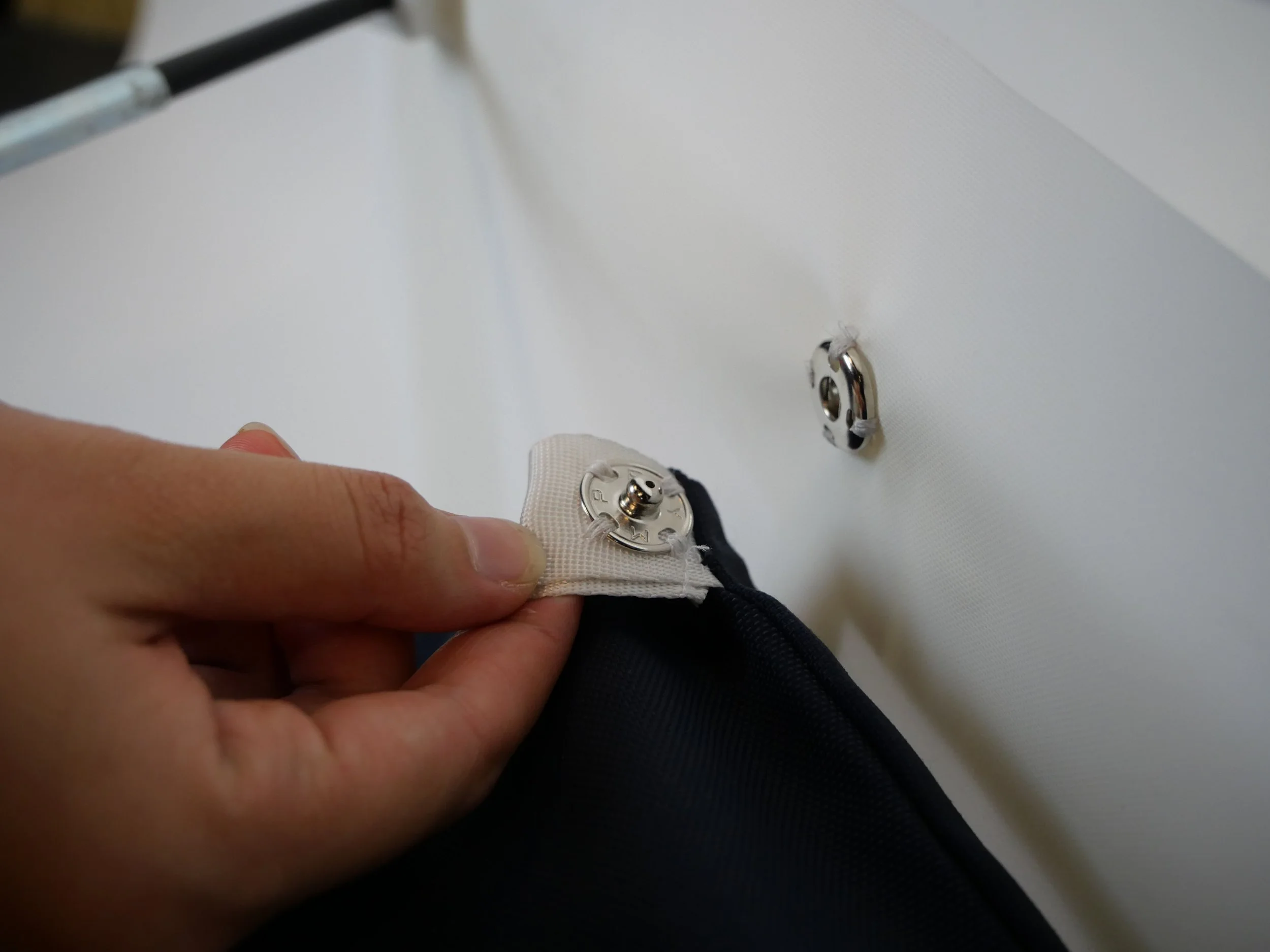

Attatching units to inflatable inner wall

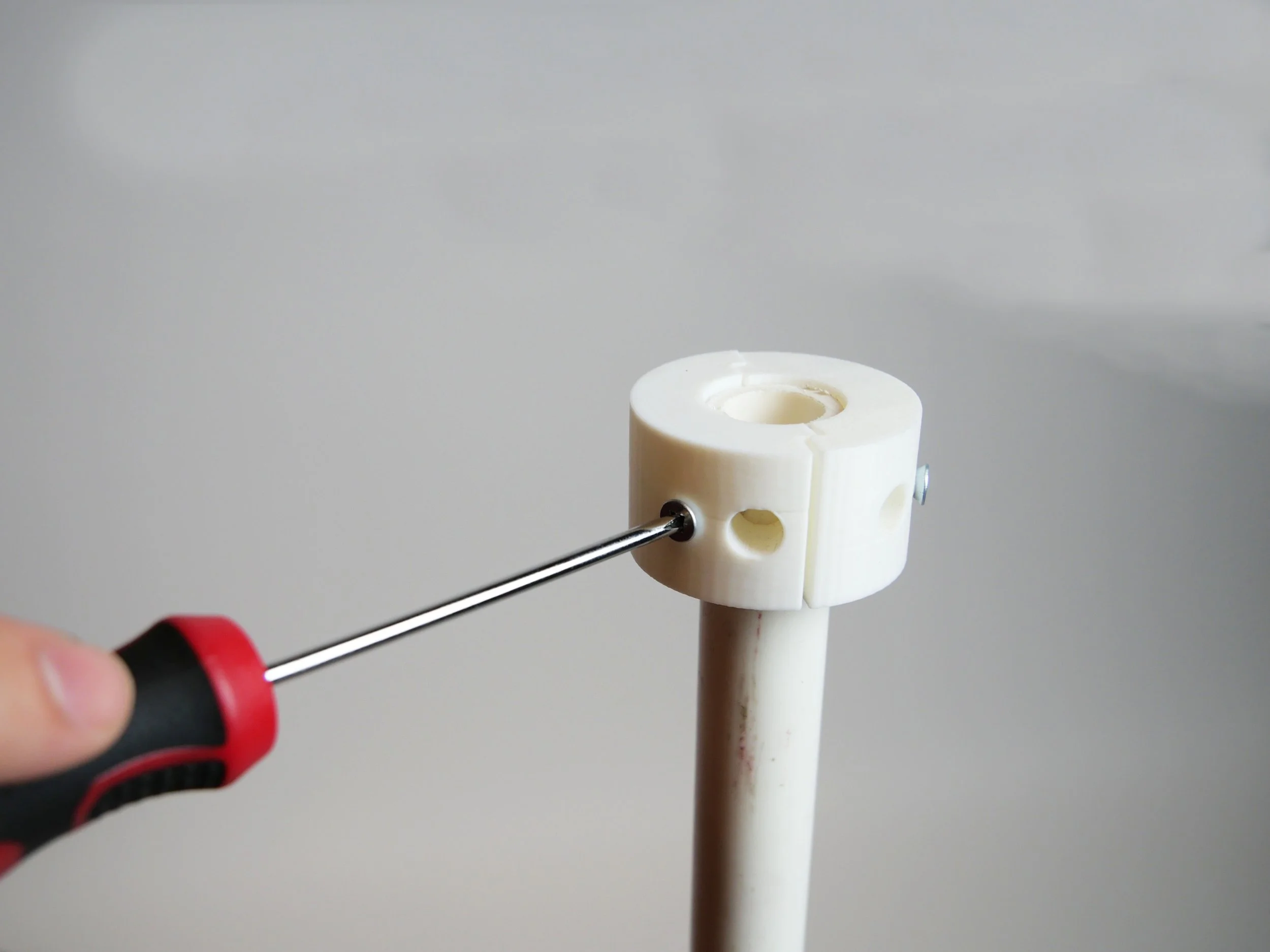

Assembling core attatchment

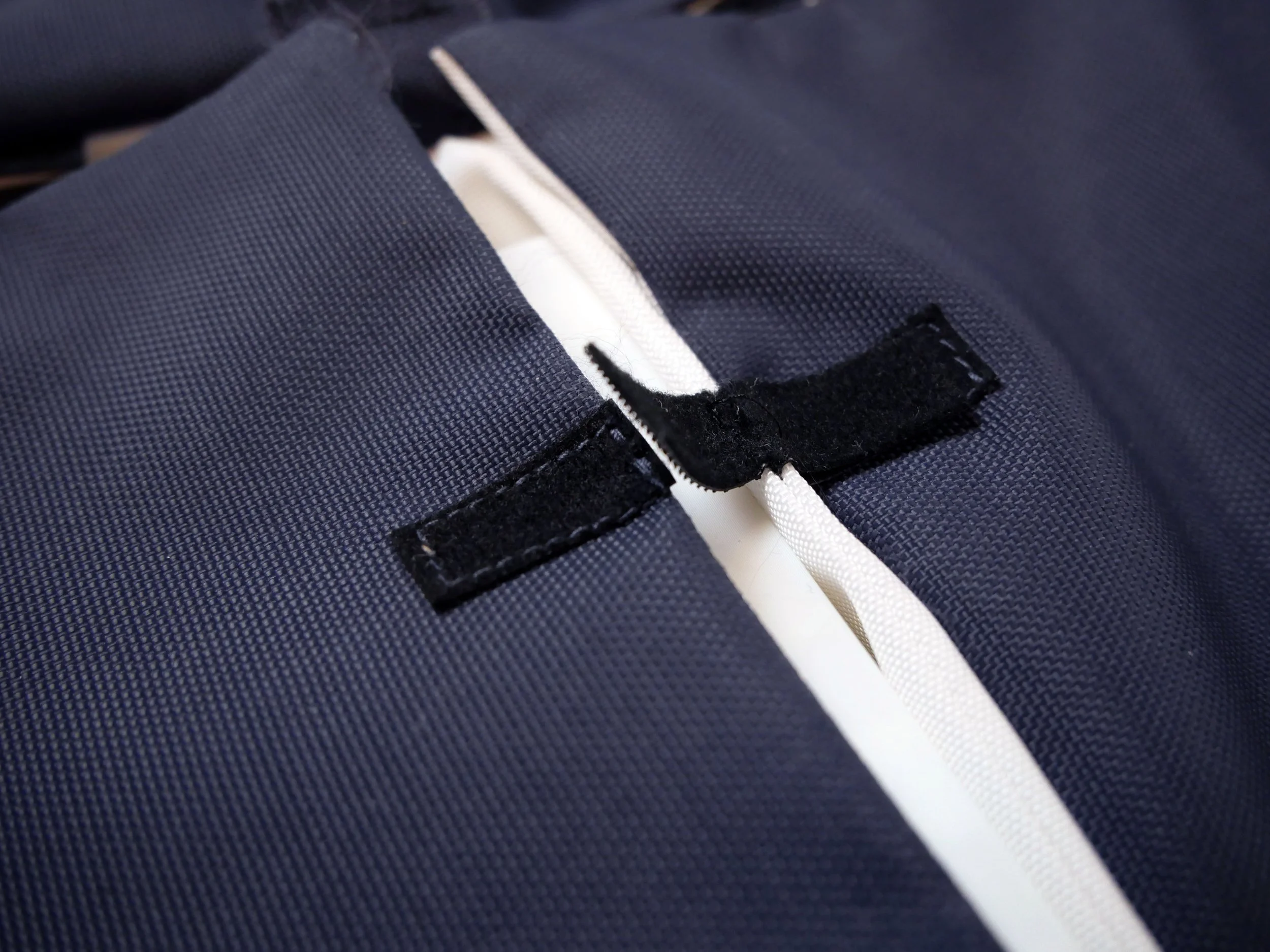

Velcro cubby closures

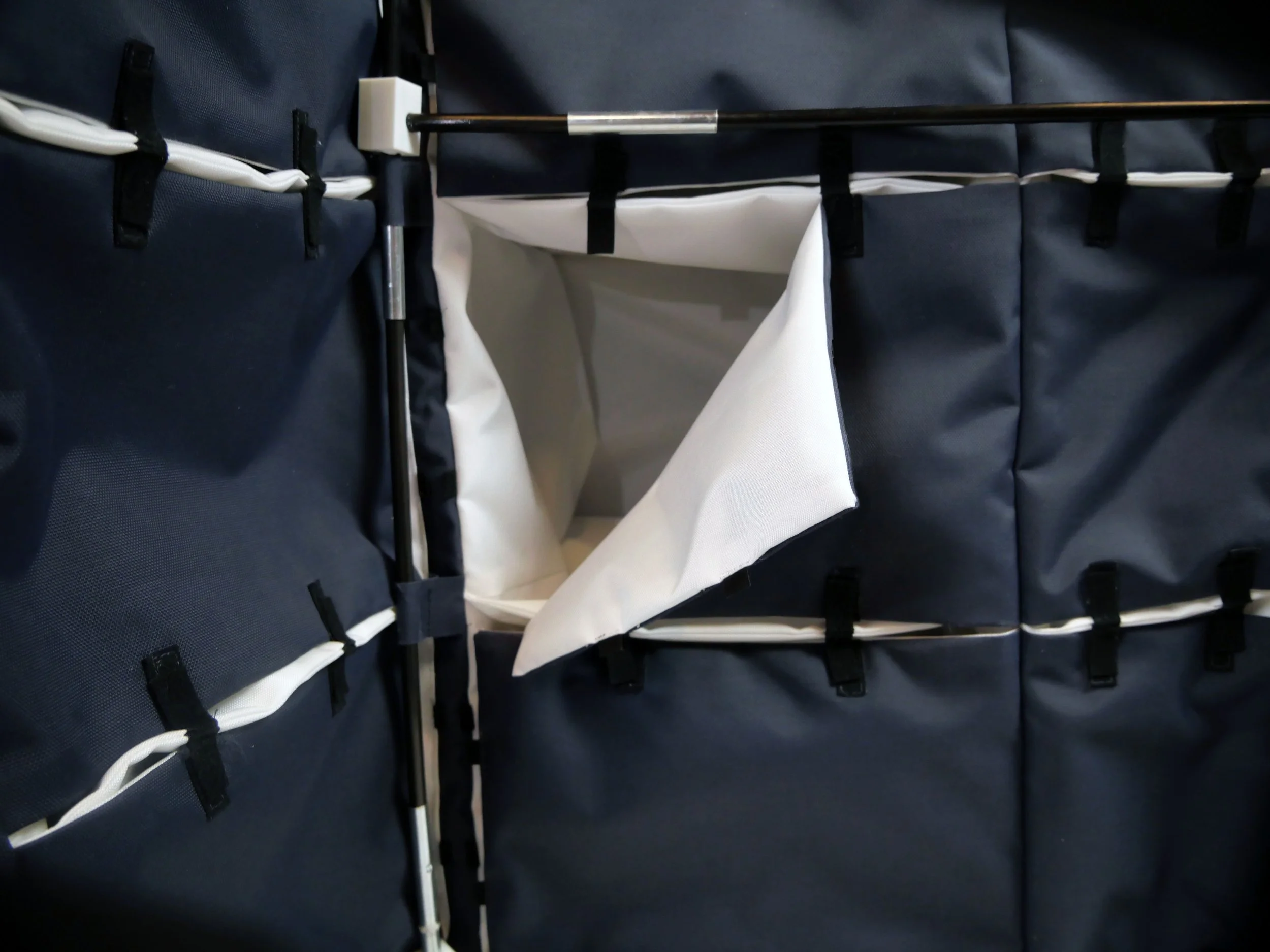

Opening a unit

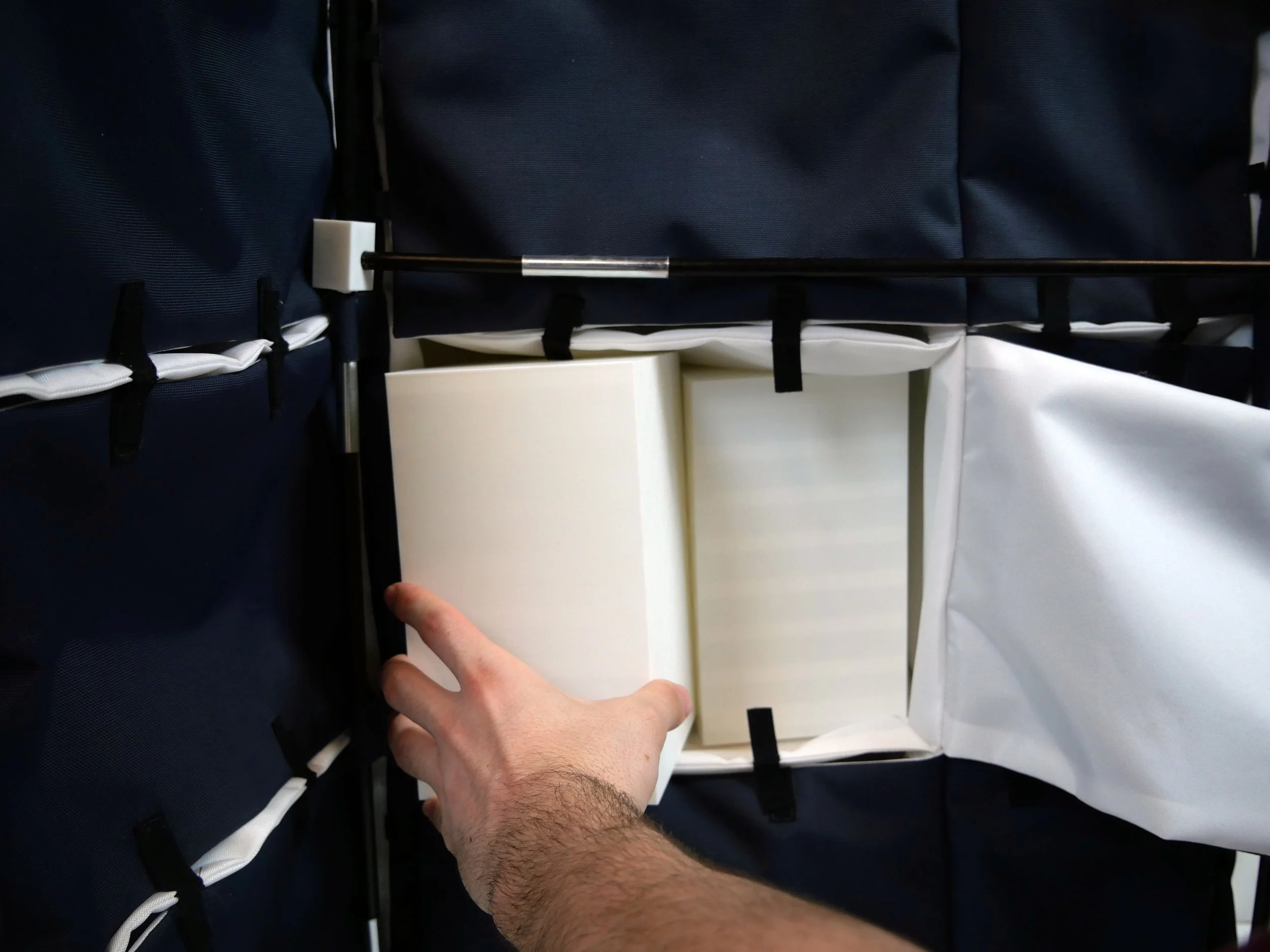

Accessing CTBs (Cargo Transfer Bags)

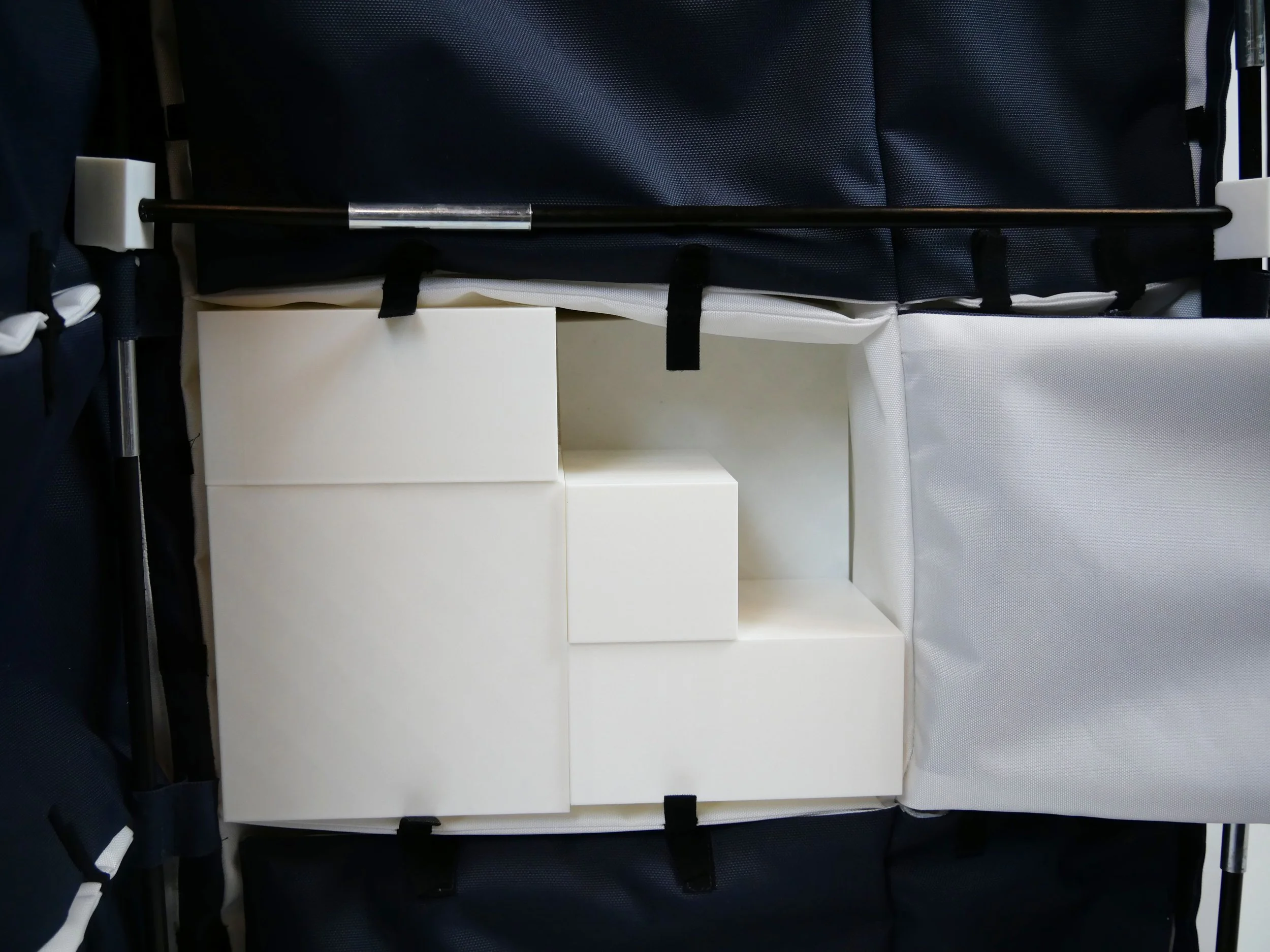

Different CTB configurations

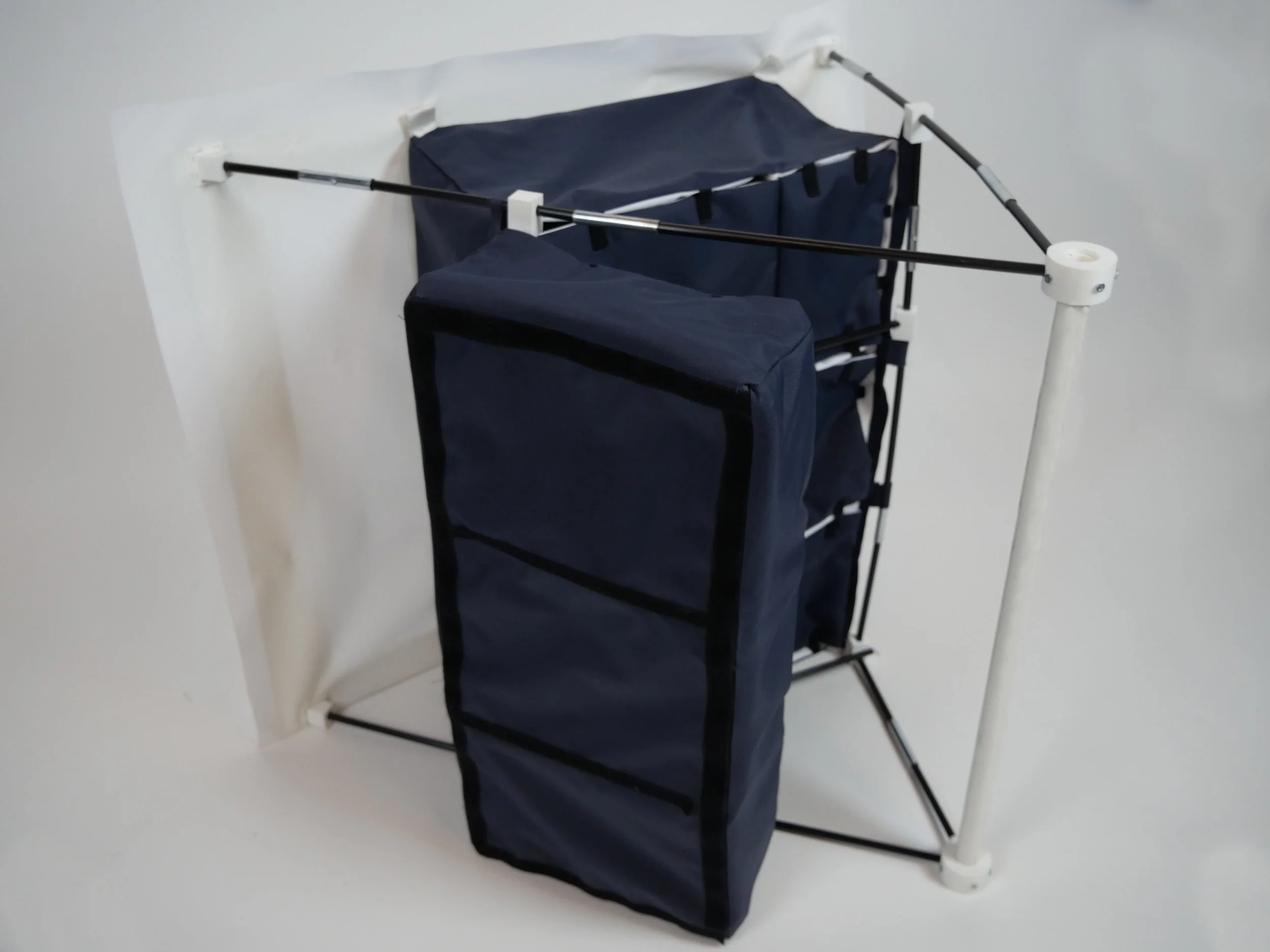

View of back of small unit

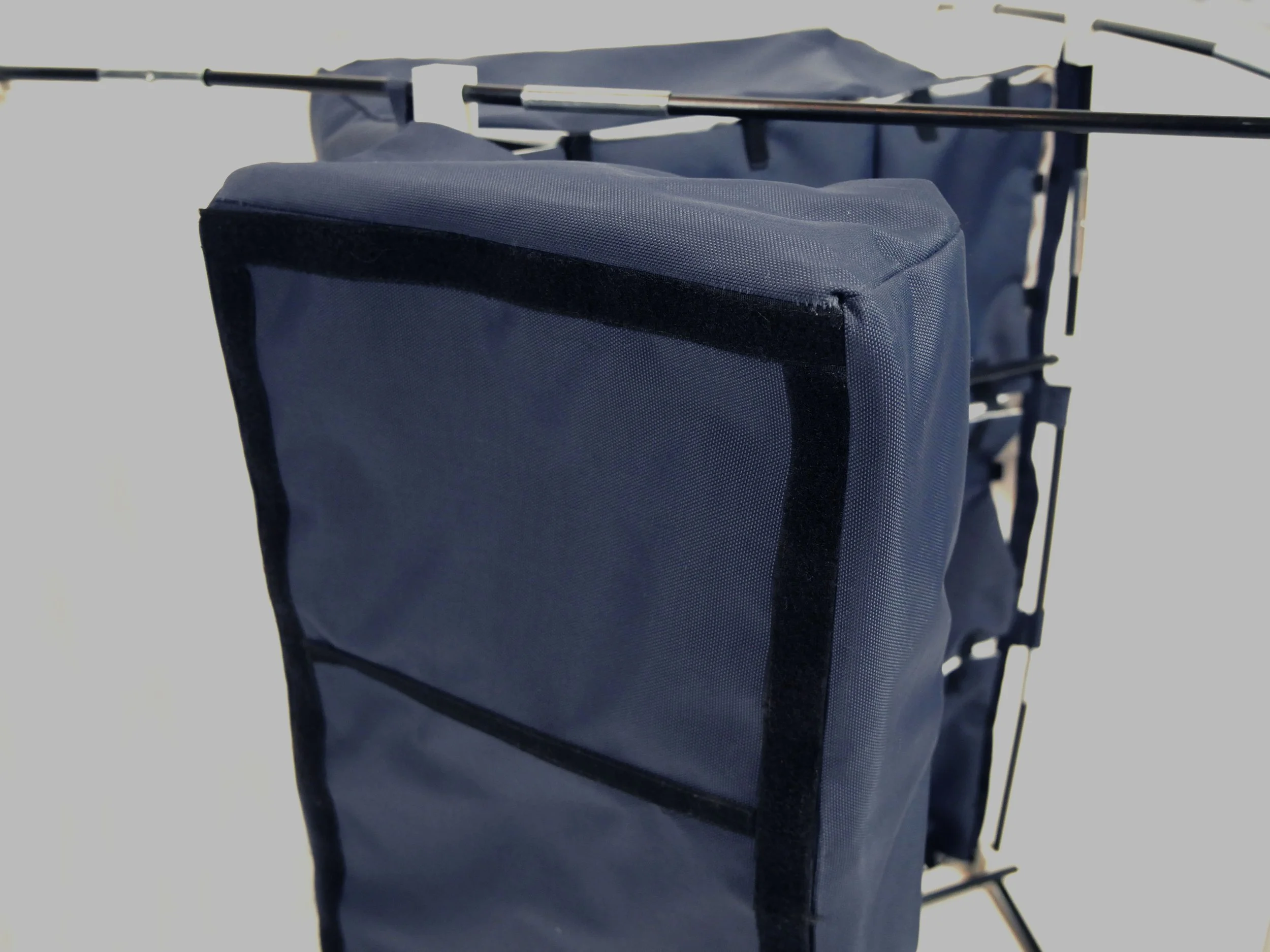

Velcro unit attatchment

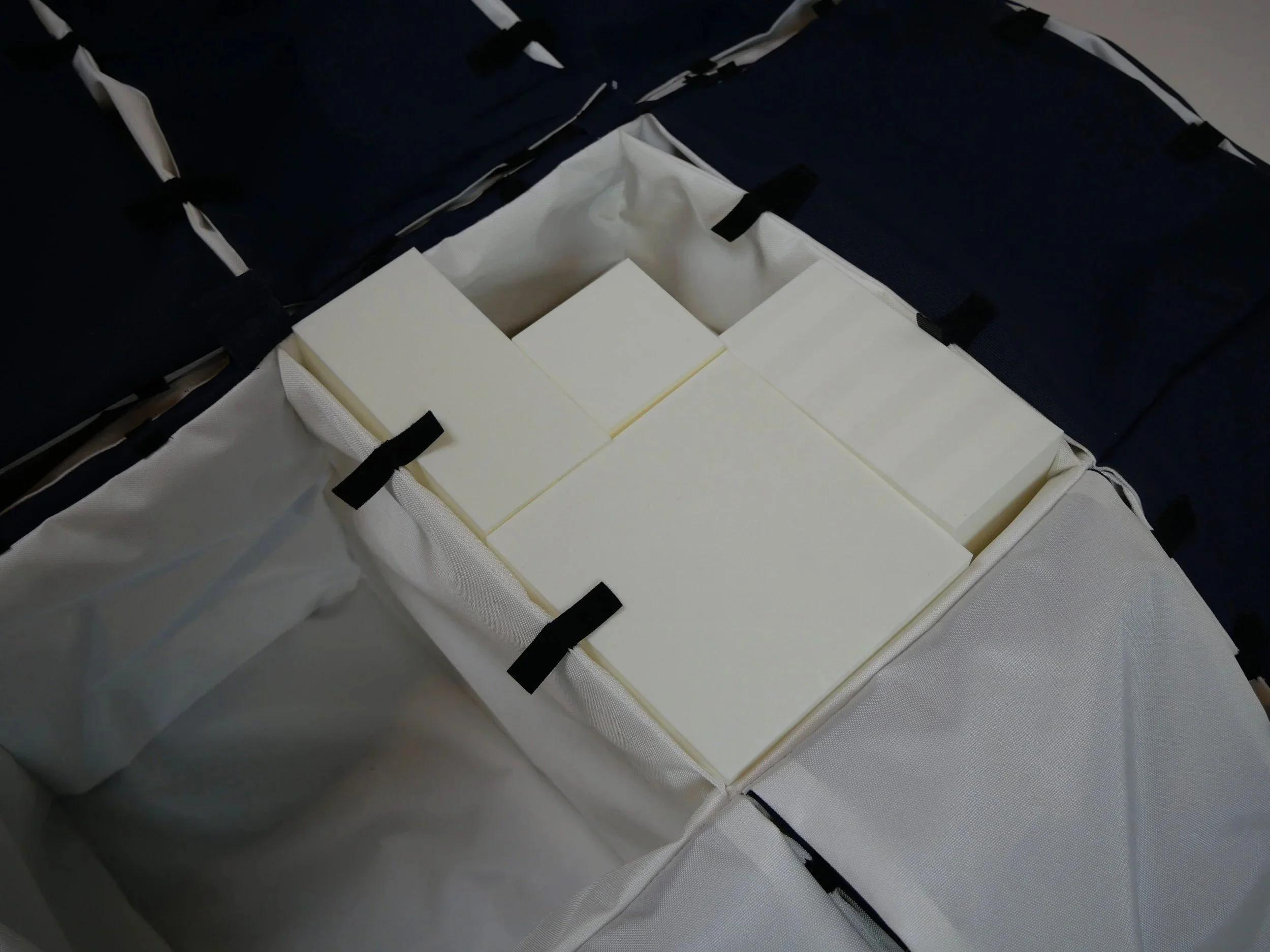

Open cubbies

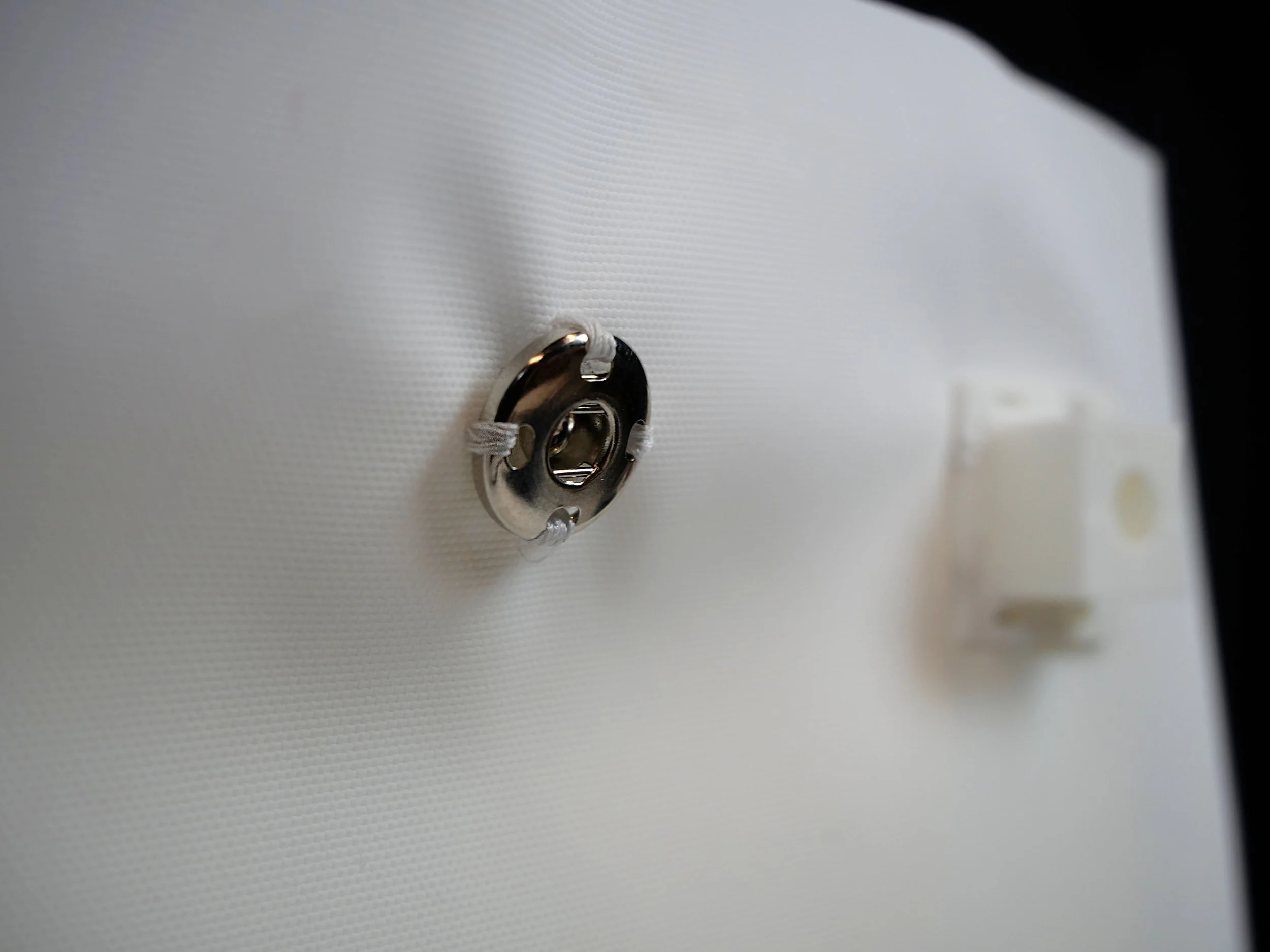

Pre-sewn in inner liner attachment

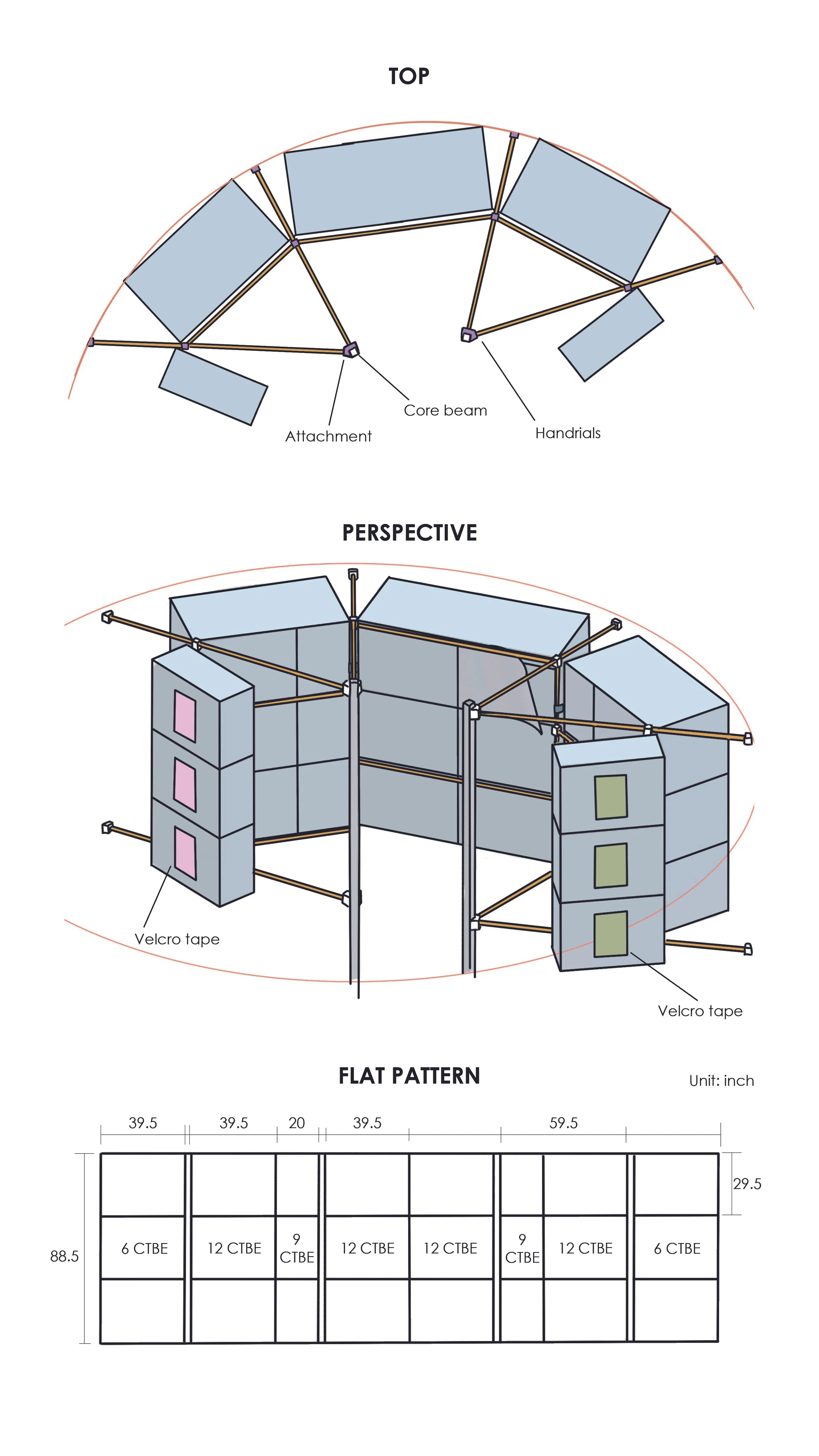

One Section Final Drawing and Pattern

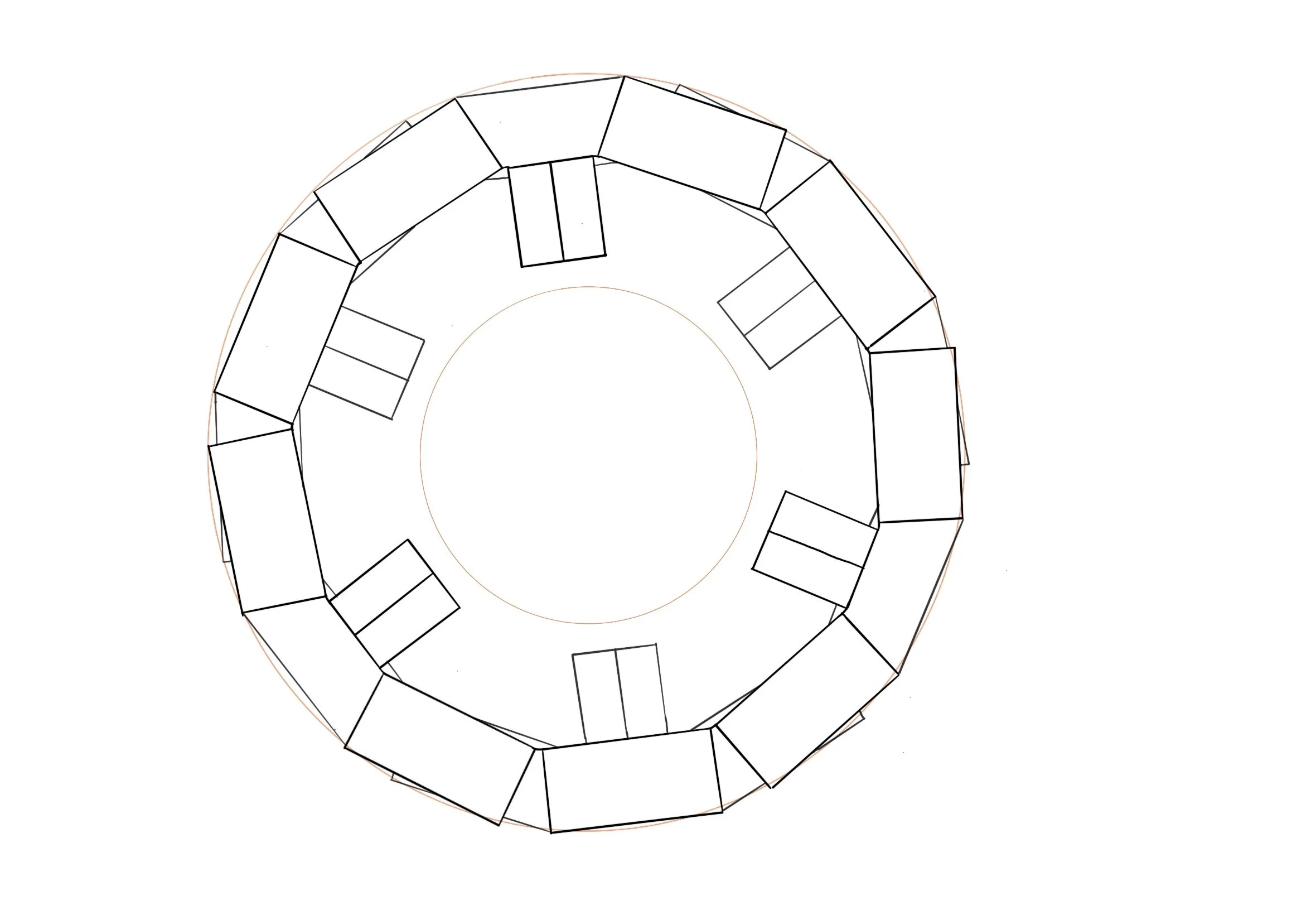

Full system top view

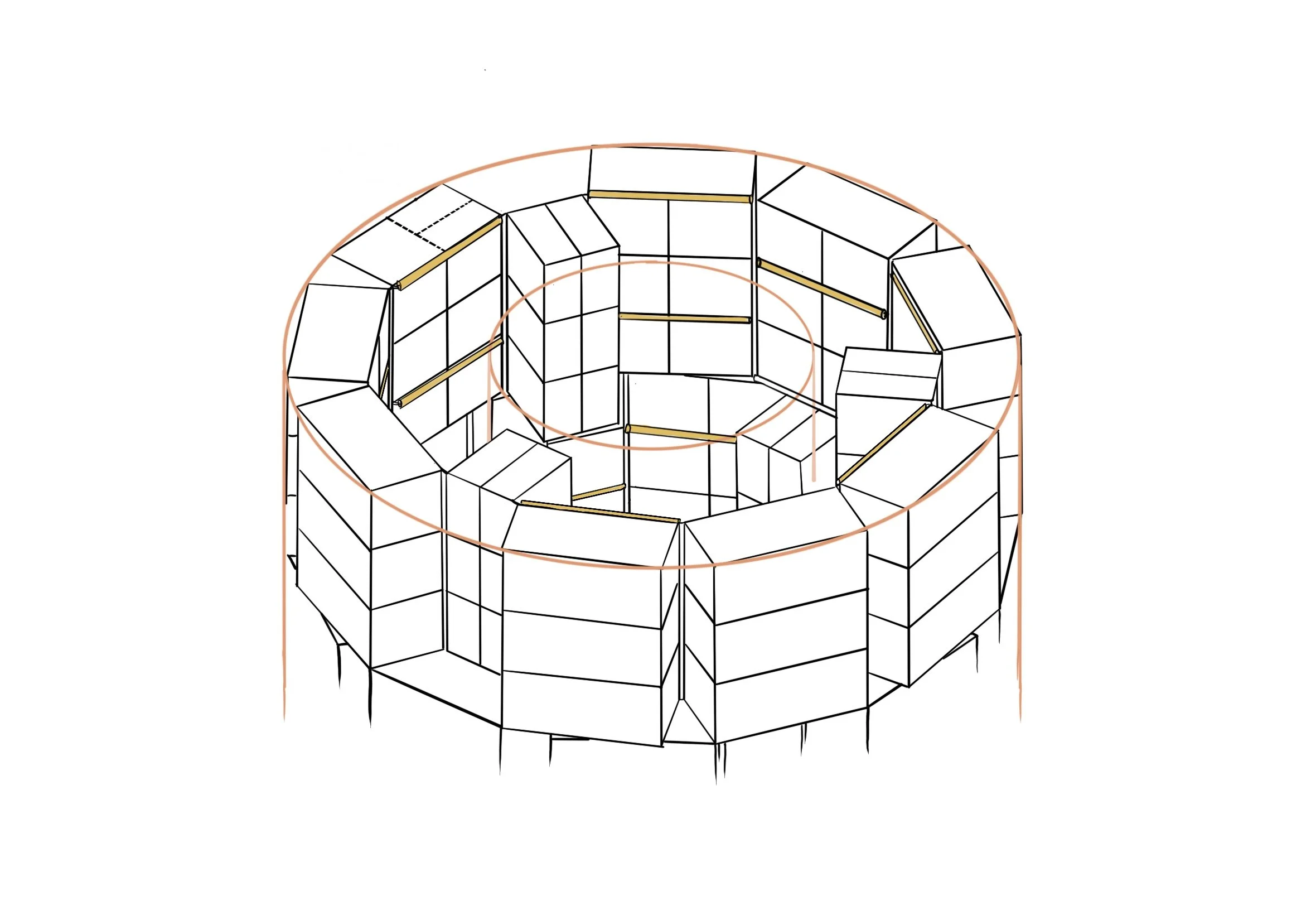

One floor 3/4 view
